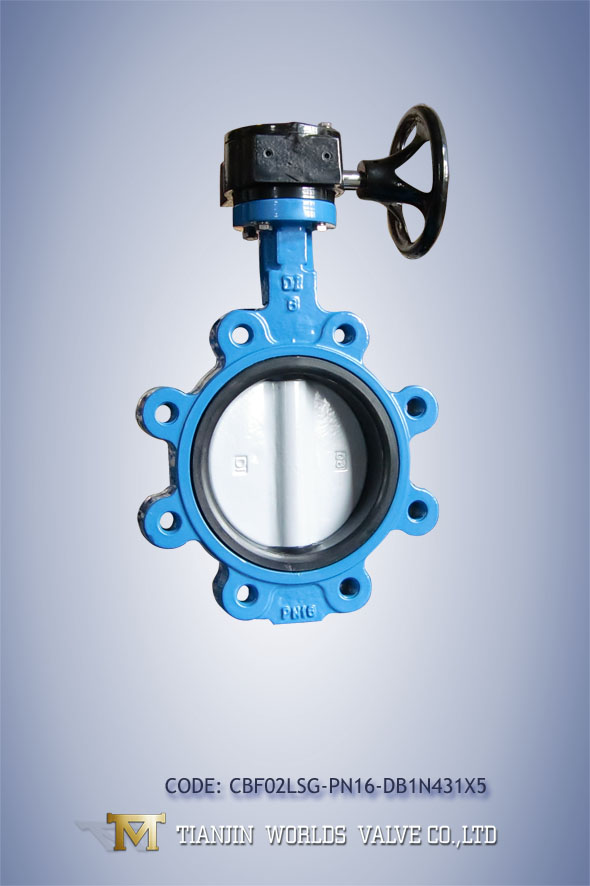

Lugged type butterfly valve(cast iron, ductile iron)

Technical standard nominal dimension DN40-DN350 / 1.5"-12" Nominal pressure PN10/16  Class125/150LB Suitalbe medium Flesh water,Sewage, Sea water,Air,Vapor, Food,Mediaine,Oils, Alialis,Salt,etc Suitable temperature -20℃ to +150℃ design standard API609,BS5155, EN593,MSS SP-67 Face to face API609, DIN3202 K1, ISO5752, BS5155 Flange connection AS2129"D""E", BS10"D""E", JIS10K/16K, ASME B16.1 125LB,ASME B16.5 150LB, BS4504, DIN2501, PN10/16 Test inspection API598, EN12266-1

If there is any other information you need, please send your specific enquiry to us. The email address as follows:

worlds@worldsvalve.com or sales@worldsvalve.com
