Current Post－－>Lever hand butterfly valve

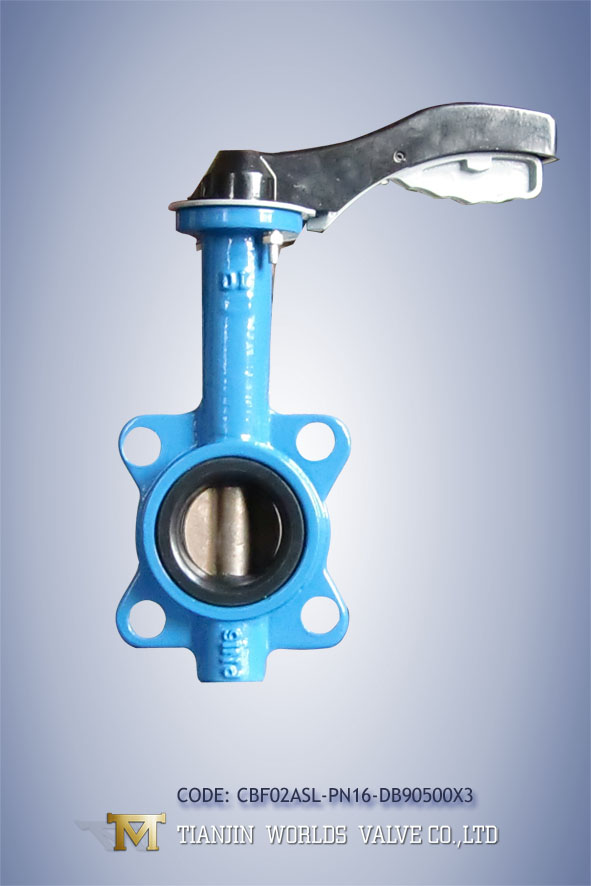

Lever hand butterfly valve

Name：lever hand butterfly valve	Type：D37A1X-10/16
Nominal Dimension：DN50-DN1000	Design Standard：GB/T12238 API609
Nominal Pressure：PN10/16	Face to face dimension：GB/T12221 API609
Suitable Medium：water、oil、gas etc	Flange Connection：GB、DIN、BS、ISO
Suitable Temperature：-25°C-120°C	Pressure Standard：GB/T13927 API598

中线蝶阀主要零部件材质 Main Spare Material Quality

阀体Body		阀板Disc		转轴Shaft	衬套Bushing	阀座Seat
材料名称	代码	材料名称	代号	材料名称	材料名称	材料名称	代号	使用温度
灰铸铁CI	Z	电镀球墨铸铁Electricplating DI	B1	不锈钢Stainless Steel 碳钢 Carbon Steel	润滑青铜Lubircated bronze 聚四氟乙烯PTFE	天然胶Natural rubber	X1	-20~+85
球墨铸铁DI	Q	铝青铜AL-bronze	B2			海帕伦Hypalon	X2	-18~+135短时-18~+149
铝青铜AL-bronze	T	ZG1Cr18Ni9Ti不锈钢SS304	B3			乙丙橡胶EPDM	X3	-45~+135短时-50~+150
ZG1Cr18Ni9Ti不锈钢SS304	P	CF8M不锈钢SS316	B5			氯丁橡胶Neoprene	X4	-7~+93短时-7~+107
CF8M不锈钢SS316	R					丁腈橡胶NBR	X5	-12~+82短时-12~+93
碳钢Carbon Steel	C					耐磨橡胶Abrasion resistant rubber	X6	-10~+50
						氟橡胶Viton	X7	-20~+85
						耐热乙丙橡胶Heat resistant EPDM	X9	-20~+85
						聚四氟乙烯PTFE	F4	-20~+85
