GB Lifting Check Valve H41H型国标升降式止回阀
Name:GB lifting check valve |
Type:H41H |
Nominal Dimension:DN25-DN300 |
Design Standard:GB/T12235 |
Nominal Pressure:PN16/25 |
Face to face dimension:GB/T12221 |
Suitable Medium:water、oil、gas etc |
Flange Connection:GB/T9113 |
Suitable Temperature:-10°C-350°C |
Pressure Standard:GB/T13927 |
主要零部件材质Main Spare Part Material Quality |
零部件名称 |
材料编号 |
阀体body |
WCB,ZGCr5Mo,ZGCr18Ni9Ti,ZGCr18Ni12Mo2Ti |
阀盖valve cover |
25,ZGCr5Mo,ZGCr18Ni9Ti,ZGCr18Ni12Mo2Ti |
阀瓣disc |
WCB,1Cr18Ni9Ti,1Cr18Ni12Mo2Ti |
阀座seat |
25,1Cr18Ni9Ti,1Cr18Ni12Mo2Ti |
垫片filling piece |
包覆垫 cable pad |

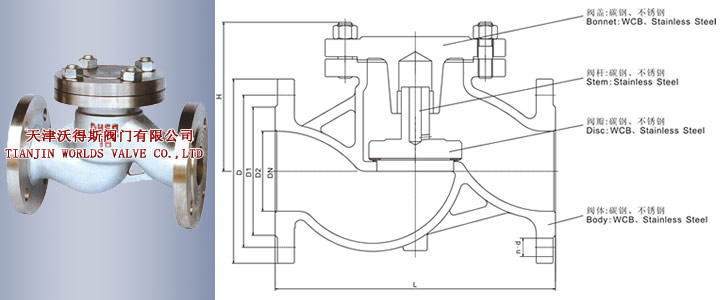

主要外形尺寸及连接尺寸 Outline Dimensions and Connection Dimensions |
公称压力 (Mpa) |
规格DN |
尺寸Size |
L |
D |
D1 |
D2 |
n-d |
H |
PN1.6 |
25 |
160 |
115 |
85 |
65 |
4-14 |
80 |
32 |
180 |
135 |
100 |
78 |
4-18 |
85 |
40 |
200 |
145 |
110 |
85 |
4-18 |
95 |
50 |
230 |
160 |
125 |
100 |
4-18 |
105 |
65 |
290 |
180 |
145 |
120 |
4-18 |
120 |
80 |
310 |
195 |
160 |
135 |
8-18 |
130 |
100 |
350 |
215 |
180 |
155 |
8-18 |
140 |
125 |
400 |
245 |
210 |
185 |
8-18 |
155 |
150 |
480 |
280 |
240 |
210 |
8-23 |
180 |
200 |
600 |
335 |
295 |
265 |
12-23 |
215 |
250 |
730 |
405 |
355 |
320 |
12-25 |
260 |
300 |
850 |
460 |
410 |
375 |
12-25 |
315 |
PN2.5 |
20 |
160 |
115 |
85 |
65 |
4-14 |
80 |
32 |
180 |
135 |
100 |
78 |
4-18 |
120 |
40 |
200 |
145 |
110 |
85 |
4-18 |
140 |
50 |
230 |
160 |
125 |
100 |
4-18 |
145 |
65 |
290 |
180 |
145 |
120 |
8-18 |
160 |
80 |
310 |
195 |
160 |
135 |
8-18 |
170 |
100 |
350 |
230 |
190 |
160 |
8-23 |
195 |
125 |
400 |
270 |
220 |
188 |
8-25 |
222 |
150 |
480 |
300 |
250 |
218 |
8-25 |
255 |
200 |
600 |
360 |
310 |
278 |
12-25 |
312 |
250 |
730 |
425 |
370 |
332 |
12-30 |
355 |
300 |
850 |
485 |
430 |
390 |
16-30 |
410 |
