pipe Expansion Joints
| Name：pipe expansion joints |
Type：TSX-10/16 |
|
Nominal Dimension：DN50-DN12000 |
Design Standard： |
| Nominal Pressure：PN10/16 |
Face to face dimension： |
| Suitalbe Medium：water、oil、gas etc |
Connection dimension of flange： |
| Suitable：-10°C-80°C |
Nominal Pressure:GB/T13927 |

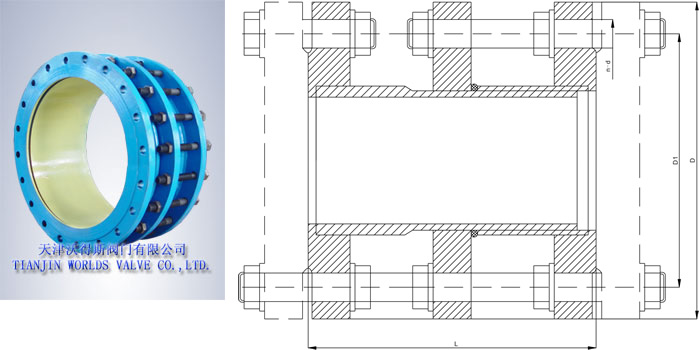

| 主要外形尺寸及连接尺寸 Outline Dimensions and Connection Dimensions |
| DN(mm) |
D |
D1 |
n-d0 |
L |
伸缩量 |
| 50 |
165 |
125 |
4-18 |
175 |
30 |
| 65 |
185 |
145 |
4-18 |
181 |
40 |
| 80 |
200 |
160 |
8-18 |
182 |
40 |
| 100 |
220 |
180 |
8-18 |
195 |
40 |
| 125 |
250 |
210 |
8-18 |
201 |
45 |
| 150 |
285 |
240 |
8-22 |
210 |
45 |
| 200 |
340 |
295 |
8-22/12-22 |
217 |
45 |
| 250 |
395/405 |
350/355 |
12-22/12-26 |
224 |
45 |
| 300 |
445/460 |
400/410 |
12-22/12-26 |
227 |
45 |
| 350 |
505/520 |
460/470 |
16-22/16-26 |
233 |
50 |
| 400 |
565/580 |
515/525 |
16-26/16-30 |
248 |
50 |
| 450 |
615/640 |
565/585 |
20-26/20-30 |
263 |
50 |
| 500 |
670/715 |
620/650 |
20-26/20-33 |
297 |
50 |
| 600 |
780/840 |
725/770 |
20-30/20-36 |
302 |
50 |
| 700 |
895/910 |
840 |
24-30/24-36 |
317 |
50 |
| 800 |
1015/1025 |
950 |
24-33/24-39 |
322 |
60 |
| 900 |
1115/1125 |
1050 |
28-33/28-39 |
324 |
60 |
| 1000 |
1230/1255 |
1160/1170 |
28-36/28-42 |
344 |
60 |
| 1200 |
1455/1485 |
1380/1390 |
32-39/32-48 |
395 |
60 |
| 1400 |
1675/1685 |
1590 |
36-42/36-48 |
405 |
60 |
| 1600 |
1915/1930 |
1820 |
40-48/40-55 |
384 |
60 |
| 1800 |
2115/2130 |
2020 |
44-48/44-55 |
380 |
60 |
| 2000 |
2325/2345 |
2230 |
48-48/48-60 |
380 |
60 |
注：“/”上面尺寸为PN1.0Mpa尺寸，“/”下面为PN1.6Mpa尺寸。
Note:There are dimensions of PN1.0Mpa products above “/"and of PN1.6Mpa products under “/".
Pipe Expansion Joints
