Y Type Strainer
| Name：Y Type Strainer |
Type：GL41-10/16 |
|
DN：DN40-DN600 |
Design Standard： |
| Nominal pressure：PN10/16 |
Face to face dimension： |
| Mediums：water、oil、gas etc. |
Connection dimension of flange：GB/T9113.1-2000 |
| Suitable temperature：-10°C-150°C |
Nominal pressure:GB/T13927-1992 |

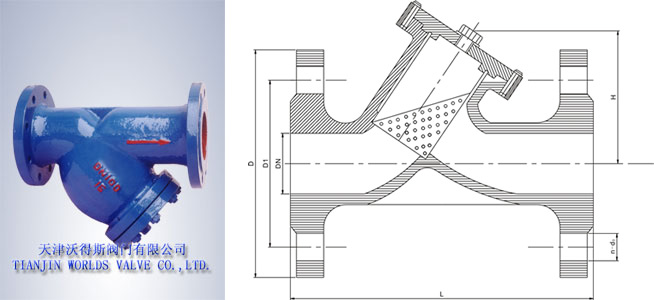

| 主要连接尺寸及重量 Outline Dimensions and Connections and Weight |
| DN(mm) |
L |
H |
D |
D1 |
D2 |
| PN10 |
PN16 |
PN10 |
PN16 |
PN10 |
PN16 |
| 40 |
200 |
114 |
150 |
150 |
110 |
110 |
4-18 |
4-18 |
| 50 |
230 |
124 |
165 |
165 |
125 |
125 |
4-18 |
4-18 |
| 65 |
290 |
139 |
185 |
185 |
145 |
145 |
4-18 |
4-18 |
| 80 |
310 |
187 |
200 |
200 |
160 |
160 |
4-18 |
8-18 |
| 100 |
350 |
199 |
220 |
220 |
180 |
180 |
8-18 |
8-18 |
| 125 |
400 |
240 |
250 |
250 |
210 |
210 |
8-18 |
8-18 |
| 150 |
480 |
264 |
285 |
285 |
240 |
240 |
8-22 |
8-22 |
| 200 |
600 |
311 |
340 |
340 |
295 |
295 |
8-22 |
12-22 |
| 250 |
622 |
385 |
395 |
405 |
350 |
355 |
12-22 |
12-26 |
| 300 |
698 |
452 |
445 |
460 |
400 |
410 |
12-22 |
12-26 |
| 350 |
787 |
520 |
505 |
520 |
460 |
470 |
16-22 |
16-26 |
| 400 |
914 |
630 |
565 |
580 |
515 |
525 |
16-26 |
16-30 |
| 450 |
978 |
720 |
615 |
640 |
565 |
585 |
20-26 |
20-30 |
| 500 |
978 |
850 |
670 |
715 |
620 |
650 |
20-26 |
20-33 |
| 600 |
1295 |
980 |
780 |
840 |
725 |
770 |
20-30 |
30-36 |
Y Type Strainer
