当前位置-->全衬两体式蝶阀

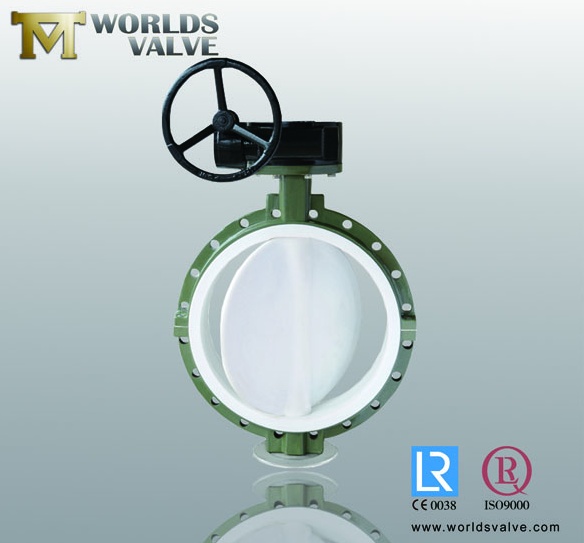

法兰中线蝶阀 FLANGED BUTTERFLY VALVE


产品简介Product Brief Introduction:
1、双向密封性能优良,扭矩值小。
2、流量特性趋于直线,调节性能好。
3、法兰连接安装便捷,立式、卧式安装均可。
4、密封副材料的多样性,可供用户选择。
5、阀门可用于管端作放空阀用,性能可靠。
6、阀座密封圈与阀体有机地结合为一体,使阀门具有较长的使用寿命。
1.   Both sides of sealing performance are choiceness and the torque is small.
2.   Flow curve tending to straight line. Excellent regulated performance.
3.   Flange connection installed easily. Both vertical and horizontal installation are all right.
4.   Have multiplicity-sealing materials for user choose.
5.   The valves can used for pipe nozzle and have reliable performance.
      Seat sealing and body are combined very well, and let that have a quit long use lifetime.




主要性能参数Main Performance Parameters:

公称压力
Nominal Pressure
PN (MPa)
公称通径
Nominal Diameter
DN (mm)
试验压力(MPa
Testing Pressure
适用温度
Suitable Temp
°C
适用介质
Suitable Media
Shell
Seal
1.0
50 ~ 1000
1.5
1.1
-10 ~ +120
水、油、气等
Water, Oils, Air etc.
1.6
2.4
1.76

产品执行标准:Product Standard:

设计标准
Design Standard
结构长度
Face to face dimensions
侧法兰标准
Flange Standard
试验检验标准
Test and check up standard
GB/T 12238
API 609
BS EN593

GB/T 12221
API 609
ISO5752
BS5155
GB/T 17241.6
ISO7005
ANSI B16.1
EN1092
GB/T 13927
API 598
ISO5208

主要零部件材质:Materials of Main Parts:


Name
阀  体
Body
阀  板
Disc
转 轴
Stem

Material
球墨铸铁、灰铸铁 + 橡胶(丁腈橡胶、乙丙橡胶)
Ductile Iron, Cast Iron + Rubber (NBR, EPDM)
球墨铸铁、铜、不锈钢
Ductile Iron, Bronze,
      Stainless steel
不锈钢
Stainless steel
