双偏心软密封法兰蝶阀
| 名称：双偏心软密封法兰蝶阀 |
型号：D343X-10/16 |
|
公称通径：DN100-DN2600 |
设计标准：GB/T12238/89 |
| 公称压力：PN10/16 |
结构长度：GB/T12221-2005 |
| 适用介质：水、污水、海水、空气等 |
阀体法兰标准：GB/T17241.6-98 |
| 适用温度：-10°C-80°C |
试验检验标准：GB/T13927-92 |

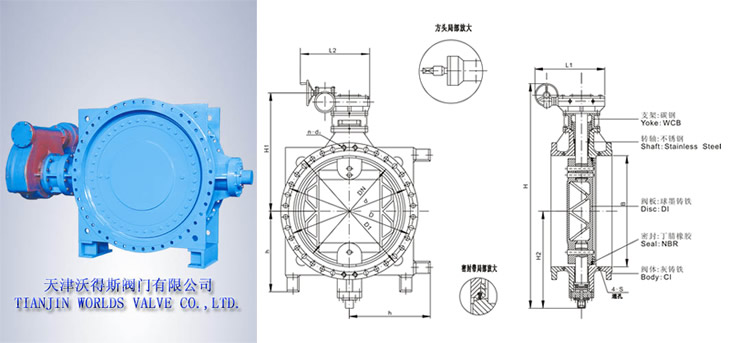

| 主要连接尺寸及重量 Outline Dimensions and Connections and Weight |
| 规格DN |
D |
D1 |
d |
b |
h |
n-do |
H |
H1 |
H2 |
B |
A |
L |
4-S |
L1 |
L2 |
Ø |
总重 (kg) |
| 1400 |
1675 |
1590 |
1530 |
62 |
960 |
36-42 |
2996 |
1668 |
1078 |
1500 |
475 |
710 |
Ø33 |
1270 |
1089 |
500 |
4280 |
| 1600 |
1915 |
1820 |
1750 |
68 |
1050 |
40-48 |
3246 |
1778 |
1218 |
1600 |
530 |
790 |
Ø33 |
1270 |
1089 |
500 |
4953 |
| 1800 |
2115 |
2020 |
1950 |
70 |
1197 |
44-48 |
3720 |
2044 |
1426 |
1900 |
570 |
870 |
Ø33 |
1625 |
1399 |
500 |
7416 |
| 2000 |
2325 |
2230 |
2150 |
74 |
1320 |
48-48 |
3851 |
2115 |
1486 |
2000 |
750 |
950 |
Ø36 |
1630 |
1430 |
500 |
9372 |
| 2200 |
2475 |
2390 |
2335 |
60 |
1377 |
52-42 |
4300 |
2400 |
1650 |
2110 |
750 |
1000 |
Ø45 |
1630 |
1430 |
500 |
10590 |
| 2400 |
2685 |
2600 |
2445 |
62 |
1477 |
56-42 |
4551 |
2515 |
1786 |
2310 |
750 |
1100 |
Ø45 |
1630 |
1430 |
500 |
12320 |
| 2600 |
2905 |
2810 |
2750 |
64 |
1675 |
60-48 |
5016 |
2735 |
2031 |
2640 |
800 |
1200 |
Ø45 |
1630 |
1430 |
500 |
14028 | |
|
| |
|
| |
| |
| |
| |
|
|
