     法兰连接金属密封蝶阀是本厂研制开发的三偏心结构型金属密封蝶阀，此产品具有安全可靠、流阻系数小，耐高温，适用于腐蚀性介质等特点。可作为调节和截止装置，广泛应用于蒸汽、热水、水、油品、煤气、天然气、化工、酸碱盐等工艺管路中。

    Flanged connection metal-seat butterfly valves are the three-dimension eccentric structure metal-seat butterfly valve which are developed by our factory. These products are safe and reliable, small coefficient of flow resistance, bear high temperature and suitable for corrosive medium and so on. They are widespread used for steam, hot water, water, oil goods, gas, metallic, acid alkali and salt technical pipeline as the adjusting and stopping setting.



1、设计合理，结构紧凑，启闭迅速。

2、开启力矩小，密封副无摩擦转动，阀门使用寿 命长。

3、更换阀体材质和密封圈复合夹层可适用不同介质。

1. Reasonable design, compact structure, opening and closing fast.

2. Small open torque, seat almost without attrition and long serving life.

3. Different body materials and seal ring compound folder layer are suitable for different medium.

名称     Name	材料    Material
阀体     Body	HT250、WCB、ZG1Cr18Ni9Ti、12CrMoV、ZG1Cr18Ni12Mo2Ti
阀板     Disc	QT500-7、WCB、ZG1Cr18Ni9Ti、12CrMoV、ZG1Cr18Ni12Mo2Ti
密封圈    Seal Ring	1Cr18Ni9Ti、304、316
转轴     Stem	2Cr13、1Cr18Ni9Ti、1Cr18Ni12Mo2Ti
填料    Stem Packing	柔性石墨  Expanded graphite



公称通径 Nominal Pressure DN (mm)	公称压力 Nominal Diameter PN (MPa)	试验压力			适用温度 Suitable Temp °C	适用介质 Suitable Media
		壳体 Shell	密封 Seal
50~2000	1.0	1.5	1.0		≤300	水、蒸汽、油品、海水、酸类 Water, steam, oil goods, sea water, acid
50~1200	1.6	2.4	1.76
50~1000	2.5	3.75	2.75
50~500	4.0	6.0	4.4
设计标准 Design Standard	GB/T 12238-1989 JB/T 8527-1997	法兰连接标准 Flange Standard		GB/T 9113.1-2000 GB/T 9115.1-2000		试验检验标准 Test and check up standard	GB/T 13927-1992 JB/T 9092-1999



222

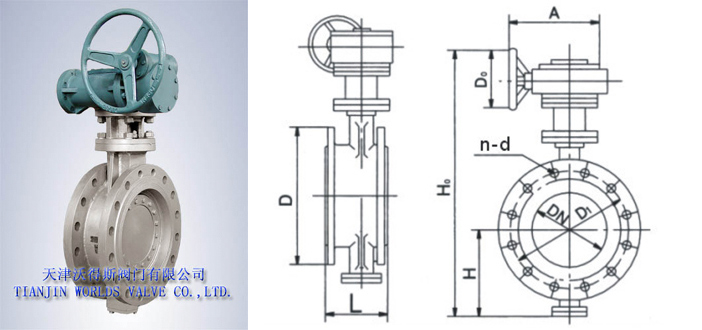

公称压力 Nominal Pressure PN (Mpa)	公称通径 Nominal Diameter DN (mm)	尺  寸     Size											重 量 Weight （kg）
		L	D1	D	n-d	H	H0	A	A1	B	B1	D0
PN1.0	50	108	125	165	4-18	125	435	128	53	130	53	160	30
	65	112	145	185	4-18	130	439	128	53	130	53	160	37
	80	114	160	200	8-18	140	475	128	53	130	53	160	45
	100	127	180	220	8-18	155	495	128	53	130	53	160	74
	125	140	210	250	8-18	180	535	128	53	130	53	160	100
	150	140	240	285	8-22	195	645	178	84	195	84	230	110
	200	152	295	340	8-22	220	703	178	84	195	84	230	150
	250	165	350	395	12-22	240	765	178	84	195	84	230	190
	300	178	400	445	12-22	285	948	209	110	258	110	300	230
	350	190	460	505	16-22	315	1005	209	110	258	110	300	290
	400	216	515	565	16-26	355	1078	269	150	319	150	350	350
	450	222	565	615	20-26	385	1175	269	150	319	150	350	450
	500	229	620	670	20-26	430	1240	269	150	319	150	350	550
	600	267	725	780	20-30	505	1375	269	150	319	150	350	710
	700	292	840	895	24-30	525	1536	340	201	425	201	450	850
	800	318	950	1015	24-33	585	1656	340	201	425	201	450	1100
	900	330	1050	1115	28-33	635	1761	421	238	355	238	450	1300
	1000	410	1160	1230	28-36	705	2110	421	238	355	238	500	1600
	1200	470	1380	1455	32-39	835	2910	421	238	355	238	500	1980
	1400	530	1590	1675	36-42	975	2560					600	2840
	1600	600	1820	1915	40-48	1100	2780					600	4500
	1800	670	2020	2115	44-48								5800
	2000	760	2230	2325	48-48
PN1.6	50	108	125	165	4-18	125	435	128	53	130	53	160	30
	65	112	145	185	4-18	130	439	128	53	130	53	160	37
	80	114	160	200	8-18	140	475	128	53	130	53	160	45
	100	127	180	220	8-18	155	495	128	53	130	53	160	75
	125	140	210	250	8-18	180	535	128	53	130	53	160	105
	150	140	240	285	8-22	195	645	178	84	195	84	230	115
	200	152	295	340	12-22	220	703	178	84	195	84	230	160
	250	165	355	405	12-26	240	765	178	84	195	84	230	220
	300	178	410	460	12-26	285	948	209	110	258	110	300	260
	350	190	470	520	16-26	315	1005	209	110	258	110	300	340
	400	216	525	580	16-30	355	1078	269	150	319	150	350	410
	450	222	585	640	20-30	385	1175	269	150	319	150	350	490
	500	229	650	715	20-33	430	1240	269	150	319	150	350	600
	600	267	770	840	20-36	505	1375	269	150	319	150	350	780
	700	292	840	910	24-36	525	1536	340	201	425	201	450	960
	800	318	950	1025	24-39	585	1656	340	201	425	201	450	1150
	900	330	1050	1125	28-39	635	1761	421	238	355	238	450	1500
	1000	410	1170	1255	28-42	705	2110	421	238	355	238	500	1800
	1200	470	1390	1485	32-48	835	2910	421	238	355	238	500	2300
PN2.5	50	108	125	165	4-18	125	435	128	53	130	53	160	30
	65	112	145	185	8-18	130	439	128	53	130	53	160	37
	80	114	160	200	8-18	140	475	128	53	130	53	160	45
	100	127	190	235	8-22	155	495	128	53	130	53	160	74
	125	140	220	270	8-26	190	535	128	53	130	53	160	100
	150	140	250	300	8-26	205	645	178	84	195	84	230	110
	200	152	310	360	12-26	235	703	178	84	195	84	230	150
	250	165	370	425	12-30	268	765	178	84	195	84	230	190
	300	178	430	485	16-30	298	948	209	110	258	110	300	230
	350	190	490	555	16-33	332	1005	209	110	258	110	300	290
	400	216	550	620	16-36	365	1078	269	150	319	150	350	350<, /DIV>,
	4,, 50	600	670	20-36	390	1175	269	150	319	150	350	450
	500	229	660	730	20-36	430	1240	269	150	319	150	350	550
	600	267	770	845	20-39	505	1375	269	150	319	150	350	710
	700	292	870	960	24-42	540	1536	340	201	425	201	450	850
	800	318	990	1085	24-48	603	1656	340	201	425	201	450	1100
	900	330	1090	1185	28-48	653	1761	421	238	355	238	450	1300
	1000	410	1210	1320	28-56	720	2110	421	238	355	238	500	1600
PN4.0	50	108	125	165	4-18	125	435	128	53	130	53	160	30
	65	112	145	185	8-18	130	439	128	53	130	53	160	37
	80	114	160	200	8-18	140	475	128	53	130	53	160	45
	100	127	190	235	8-22	150	495	128	53	130	53	160	75
	125	140	220	270	8-26	190	535	128	53	130	53	160	105
	150	140	250	300	8-26	205	645	178	84	195	84	230	115
PN4.0	200	152	320	375	12-30	235	703	178	84	195	84	230	160
	250	165	385	450	12-33	280	765	178	84	195	84	230	220
	300	178	450	515	16-33	315	948	209	110	258	110	300	260
	350	190	510	580	16-36	350	1005	209	110	258	110	300	340
	400	216	585	660	16-39	390	1078	269	150	319	150	350	410
	450	222	610	685	20-39	403	1175	269	150	319	150	350	490
	500	229	670	755	20-42	430	1240	269	150	319	150	350	600

         Note: The dimensions of D1 and n-d ones are manufactured according to China Standard (GB), International Standard (ISO), American Standard (ANSI), Germany Standard (DIN), England Standard (BS), and Japan Standard (JIS). The dimensions of upper flange are manufactured according to GB/T 12223 and ISO 5211 Standard
